LCD Display KUM-100 Four-Wire Dual Output Ultrasonic Level Meter For DC12-28V Power Supply In Industrial Applications

Product Description

Ultrasonic level meter is an intelligent non-contact liquid level measurement instrument. It does not have to contact the industrial medium to meet most of the liquid level, material level measurement requirements, a complete solution to the pressure, capacitance, float type and other traditional measurement methods brought about by the winding, clogging, leakage, corrosion of the medium, maintenance and other shortcomings. Therefore, it can be widely used in various fields related to material level, liquid level measurement and control.
This product adopts advanced industrial-grade chip, digital temperature compensation, etc... The product adopts advanced industrial-grade chips, digital temperature compensation and other special integrated circuits, strong anti-interference, and has perfect level measurement and control, data transmission and man-machine communication functions. It also adopts ABS engineering plastic waterproof shell, comes with LCD liquid crystal display, high-definition Chinese and English menu interface. It supports isolated 4-20mA output, RS485 communication, two relays, and online output adjustment.
Feature

• LCD display
• Solid level/liquid level mode selection
• Can arbitrarily set the starting point and end point of the output range
• With 4G/LoRa wireless communication (optional)
• With restore setting function, support to restore factory settings
• With digital filtering, dynamic echo recognition*Digital sensor, RS-485 output, support MODBUS
• No reagents, no pollution, more economical and environmentally friendly
• Automatically compensates for pH and temperature in water

Parameter

Range	0-10m
Accuracy	±0.5%F.S
Display	LCD
Power supply	DC12-28V
Electrical interface	M16*1.5
Protection	IP65
Blind zone	0.4m
Resolution	1mm
Keys	Three patch buttons
Power consumption	<0.6W
Thread	G2
Working environment	temperature & pressure
Output	4 -wire 4 - 20mA, RS485, 2 relay (Default)

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety
explosion-proof, etc. which assure our products are conform to the international standards.

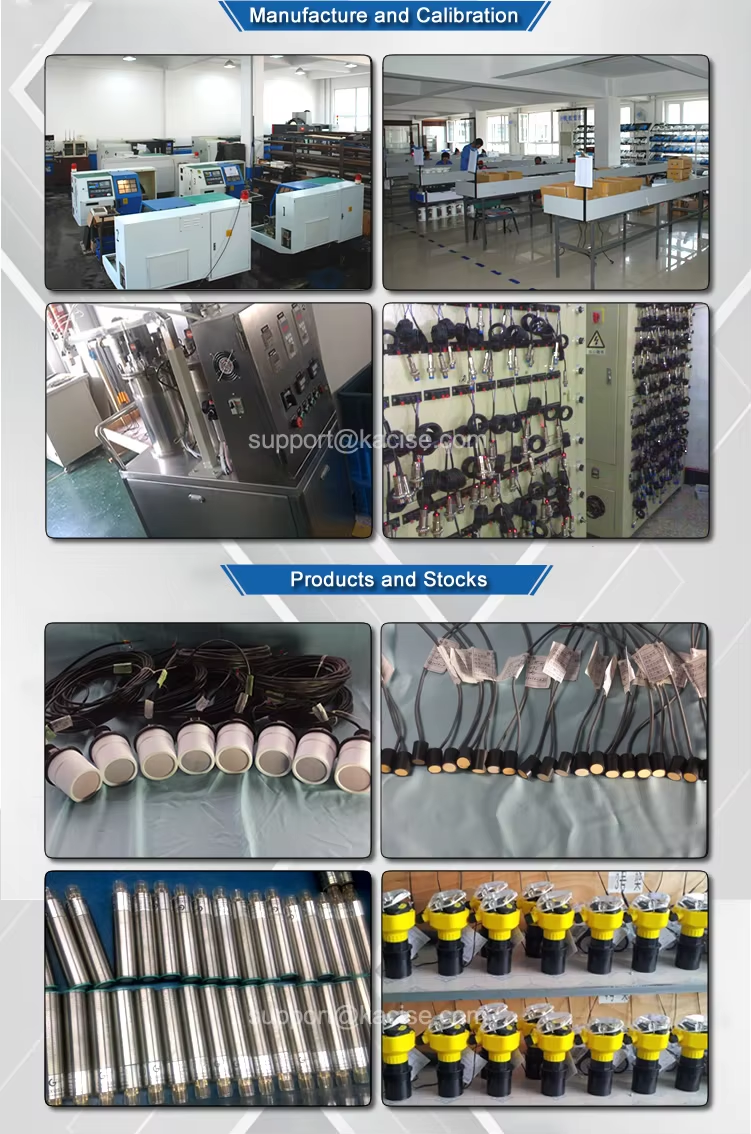

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

* Your inquiry will be replied in 24hours.
* Well-trained and experienced staffs to answer all your enquires in fluent English.
* OEM&ODM, we can help you to design and your request will be put into product.
* Distributorship are offered for your unique design and some our current models.
* Protection of your sales area, ideas of design and all your private information.
* Discounts are offered based on order quantities.
